polimero-fluoropolimero-granulo-verde-MEBRA
Fluoropolimero

PFA

Description

PFA is a completely fluorinated copolymer that has small branches, which vary according to its copolymer, and thermomechanical properties that are based on the type and number of its lateral chains. As a guideline, a higher number of lateral chains corresponds to a lower stability at high temperatures as well as a lower melting point and creep resistance, but greater flexibility and resilience of the material. A variable that allows one to adjust some characteristics of this polymer is the molecular weight: by playing with this, one can have better workability, or lower viscosity of the material, which goes, however, to the detriment of its mechanical properties and resistance. PFA combines the conventional techniques of thermoplastic resin processing (extrusion, injection molding, etc.) with the exceptional properties of PTFE. PFA is the only thermoplastic polymer that can be processed in the melted state and can compete with the work temperature range of PTFE, making it suitable for use in both high and low temperature conditions and with chemically aggressive substances. A typical property of the fluoropolymers is resistance to aggressive chemical agents, even to strong oxidants (ex. Ozone), that unites with resistance to atmospheric agents and sunlight. PFA is a pure polymer that does not need stabilizers, plasticizers, lubricants, or flame retardants. It also exhibits optimal anti-adhesion properties to almost all glues and varnishes. In commerce one can find it in various forms, such as granules for the production of prophylactics or even as aqueous dispersions for coatings and impregnation.

Discover all products in pfa

More info

COMMON NAME

PFA (perfluoroalkoxy)

MORPHOLOGY

Semi-crystalline polymer

SYNTHESIS

Polymer obtained by the copolymerization of TFE (tetrafluoroethylene) and a smaller quantity of either PAVE (Perfluoro alkyl vinyl ether), PMVE (Perfluoro methyl vinyl ether), PEVE (perfluoro ethyl vinyl ether), or PPVE perfluoro propyl vinyl ether) in a halogenated solvent.

STRUCTURE

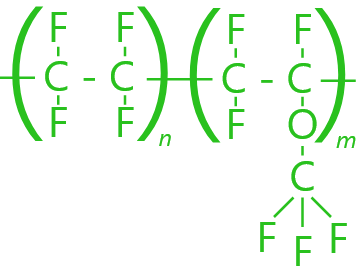

Fluoropolymer PFA structure by Mebra Plastik

PROPERTIES

  • Dimensional stability
  • Excellent resistance to wear and abrasion
  • Optimal anti-adhesion properties
  • Stress-cracking resistance
  • Excellent flex-life
  • Flame resistance UL 94 V-0
  • Limiting oxygen index (LOI) above 95
  • Optimal transparency
  • Chemical resistance to numerous aggressive substances
  • Optimal resistance to UV light and atmospheric agents
  • Optimal resistance at low temperatures
  • Optimal resistance at high temperatures
Typologies
The heart of our production is extrusion and with this process we generate wounded linear tubes or straight cut pieces of tube. With further processing, we produce other types of products and we finally combine accessories and other items to complete the range.

Single, flexible, non-thermoformed tube, wrapped in coils of various lengths.

PRO:

  • small footprint;
  • long distances seamless.

VERSUS:

  • elastic memory of the winding;
  • tolerance on the cut of +/- 2% of the length.
