RILSAN® PA 11 PHL

Immagine

Categoria (Padre)

Polyamide

Materie Prime

PA 11

RILSAN® PA 11 PHL

Descrizione

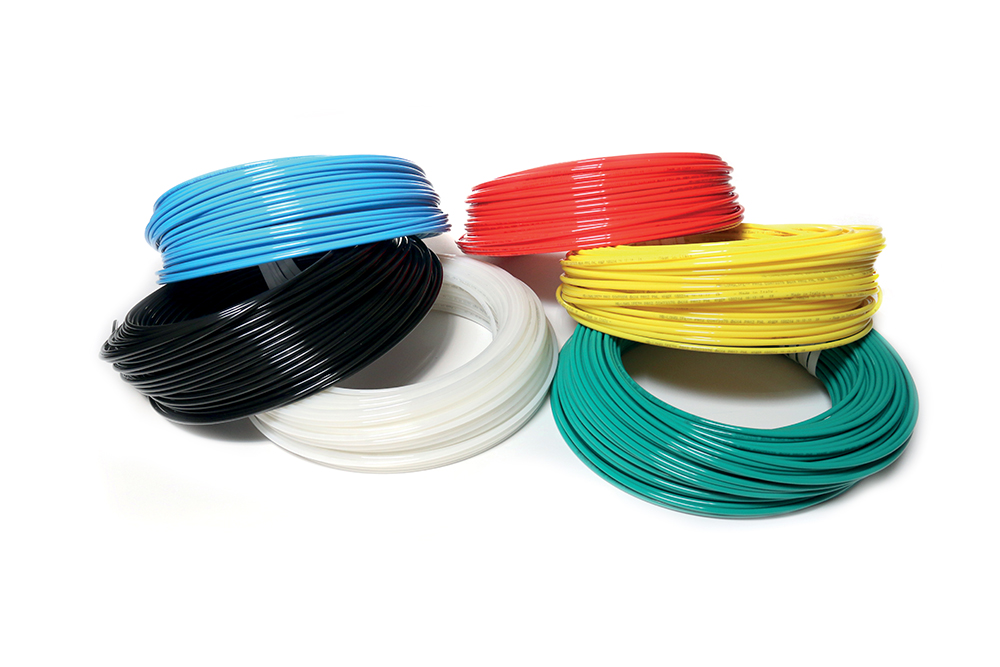

Linear flexible tubing in Rilsan® PA 11 PHL of vegetal origin for industrial and automotive applications.

Print current page

Features

Rilsan tubes® PA 11 flexible linear PHL of plant origin are the preferred solution of those looking for the best among polyamides, with an eye to nature. The excellent mechanical and chemical properties and the resistance to cold impacts allow its use in numerous industrial and automotive applications. The tubes in this series are produced with bio-polyamide 11 produced from renewable sources, derived from the flexible, plasticized lead oil, stabilized in light and heat. The raw material is designed to meet DIN 73378/74324 regulations.

Grafico caratteristiche

Flexibility 8.5

Lightness 8.5

Chemical resistance 8

Low temperature resistance 8

High temperature resistance 6.5

Hardness 4.3

Dimensional stability 8.5

Contenuti custom

Standard lengths

100 m Øe/oØ <= 3 mm
25-50-100 m 4mm <= Øe/oØ <= 24 mm
25-50 m Øe/oØ >= 25 mm

Grade alternatives

Superflexible PHL
Rigid HL
Rigid and food HL

Part number	Inner diameter (iØ)	Outer diameter (oØ)	Wall thickness	Minimum bending radius	Operating pressure (23°C)	Standard colors
TR1X2	1 mm	2 mm	0.5 mm	10 mm	44 BAR
TR1X4	1 mm	4 mm	1.5 mm	10 mm	80 BAR
TR1.5X2.5	1.5 mm	2.5 mm	0.5 mm	10 mm	33 BAR
TR1.5X3	1.5 mm	3 mm	0.75 mm	10 mm	44 BAR
TR1.6X3.17	1.6 mm	3.17 mm	0.785 mm	10 mm	43 BAR
TR2X3	2 mm	3 mm	0.5 mm	15 mm	26 BAR
TR2X4	2 mm	4 mm	1 mm	15 mm	44 BAR
TR2.3X4	2.3 mm	4 mm	0.85 mm	15 mm	35 BAR
TR2.5X3	2.5 mm	3 mm	0.25 mm	30 mm	12 BAR
TR2.5X4	2.5 mm	4 mm	0.75 mm	15 mm	30 BAR
TR2.7X4	2.7 mm	4 mm	0.65 mm	20 mm	25 BAR
TR3X4	3 mm	4 mm	0.5 mm	25 mm	19 BAR
TR3X5	3 mm	5 mm	1 mm	20 mm	33 BAR
TR3X6	3 mm	6 mm	1.5 mm	20 mm	44 BAR
TR3.5X5	3.5 mm	5 mm	0.75 mm	25 mm	23 BAR
TR3.5X6	3.5 mm	6 mm	1.25 mm	20 mm	35 BAR
TR4X5	4 mm	5 mm	0.5 mm	40 mm	14 BAR
TR4X6	4 mm	6 mm	1 mm	30 mm	26 BAR
TR4X8	4 mm	8 mm	2 mm	25 mm	44 BAR
TR4.35X6.35	4.35 mm	6.35 mm	1 mm	30 mm	24 BAR
TR4.5X6	4.5 mm	6 mm	0.75 mm	40 mm	19 BAR
TR5X7	5 mm	7 mm	1 mm	40 mm	22 BAR
TR5X8	5 mm	8 mm	1.5 mm	30 mm	30 BAR
TR6X8	6 mm	8 mm	1 mm	50 mm	19 BAR
TR6X10	6 mm	10 mm	2 mm	35 mm	33 BAR
TR6.5X10	6.5 mm	10 mm	1.75 mm	40 mm	28 BAR
TR7X9	7 mm	9 mm	1 mm	65 mm	16 BAR
TR7X9.52	7 mm	9.52 mm	1.26 mm	55 mm	20 BAR
TR7X10	7 mm	10 mm	1.5 mm	50 mm	23 BAR
TR7.5X10	7.5 mm	10 mm	1.25 mm	60 mm	19 BAR
TR8X10	8 mm	10 mm	1 mm	80 mm	14 BAR
TR8X12	8 mm	12 mm	2 mm	55 mm	26 BAR
TR9X12	9 mm	12 mm	1.5 mm	75 mm	19 BAR
TR9.52X12.7	9.52 mm	12.7 mm	1.59 mm	75 mm	19 BAR
TR10X12	10 mm	12 mm	1 mm	115 mm	12 BAR
TR10X14	10 mm	14 mm	2 mm	75 mm	22 BAR
TR11X14	11 mm	14 mm	1.5 mm	100 mm	16 BAR
TR11X15	11 mm	15 mm	2 mm	85 mm	20 BAR
TR12X14	12 mm	14 mm	1 mm	155 mm	10 BAR
TR12X15	12 mm	15 mm	1.5 mm	115 mm	14 BAR
TR12X16	12 mm	16 mm	2 mm	95 mm	19 BAR
TR12.5X15	12.5 mm	15 mm	1.25 mm	140 mm	12 BAR
TR13X15	13 mm	15 mm	1 mm	180 mm	9 BAR
TR13X16	13 mm	16 mm	1.5 mm	130 mm	13 BAR
TR14X16	14 mm	16 mm	1 mm	205 mm	8 BAR
TR14X18	14 mm	18 mm	2 mm	125 mm	16 BAR
TR15X18	15 mm	18 mm	1.5 mm	170 mm	12 BAR
TR16X18	16 mm	18 mm	1 mm	260 mm	7 BAR
TR16X20	16 mm	20 mm	2 mm	155 mm	14 BAR
TR18X20	18 mm	20 mm	1 mm	320 mm	7 BAR
TR18X22	18 mm	22 mm	2 mm	185 mm	13 BAR
TR19X22	19 mm	22 mm	1.5 mm	255 mm	9 BAR
TR19X25	19 mm	25 mm	3 mm	155 mm	18 BAR
TR20X24	20 mm	24 mm	2 mm	225 mm	12 BAR
TR22X25	22 mm	25 mm	1.5 mm	330 mm	8 BAR
TR24X28	24 mm	28 mm	2 mm	310 mm	10 BAR
TR25X30	25 mm	30 mm	2.5 mm	280 mm	12 BAR
TR34X40	34 mm	40 mm	3 mm	415 mm	10 BAR

RILSAN® PA 11 PHL

Standard lengths

Grade alternatives

You might be interested in

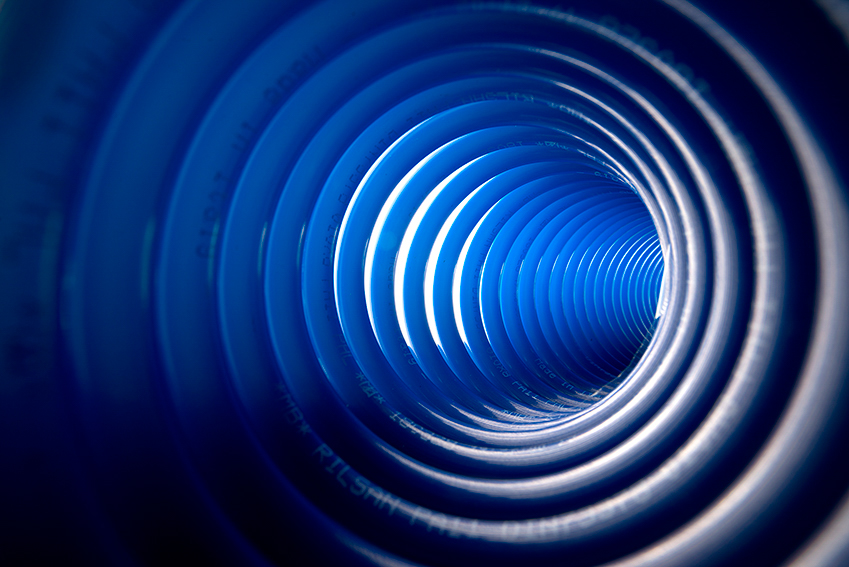

RILSAN® PA 11 PHL SPIRAL HOSE

PA MB-TEC®

PA 12 PHL MB-LONGLIFE®

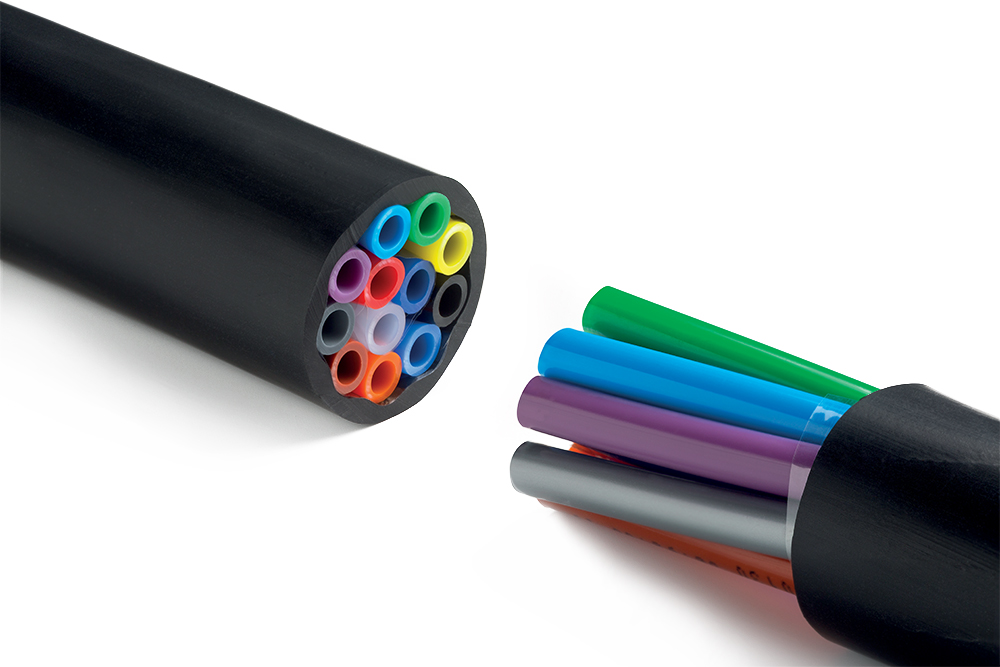

PA 12 PHL MB-LONGLIFE® MULTI-TUBE
