POLYURETHANE 98 MB-LONGLIFE® SPIRAL HOSE
Descrizione

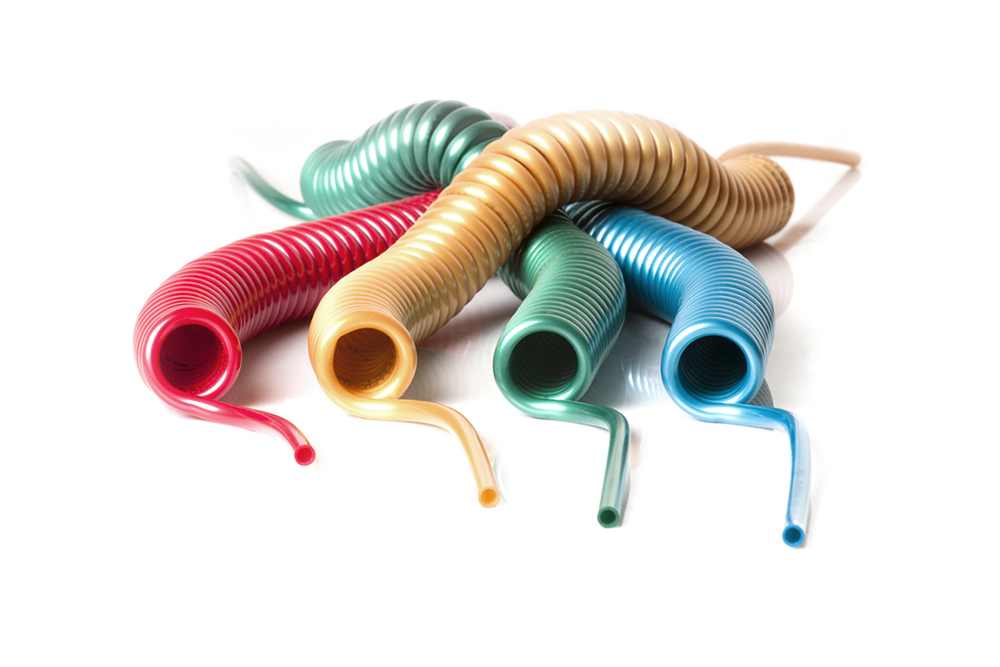

Spirals made of PU 98 MB-LONGLIFE®. Excellent elastic memory and longevity for a product that was born to work under stress.
Features
Features
Foreign base polyurethane spirals of the MB-LONGLIFE series®. Their excellent twisting resistance, excellent abrasion resistance and exceptional working memory make them the ideal choice for projects that require repeated tube bends and twists.
Grafico caratteristiche
Flexibility
8.7
Lightness
5
Chemical resistance
3
Low temperature resistance
8.7
High temperature resistance
4
Hardness
6
Dimensional stability
10
Abrasion resistance
8.5
Sector
Applications
Products
| Part number | Inner diameter (iØ) | Outer diameter (oØ) | Wall thickness | Standard colors | Material length | Working length | Retracted length | Turns n | Tale A | Tale B | winding Ø | outer Ø |
| SPU4X6X2C | 3.8 mm | 6 mm | 1.1 mm |
|
2 m | 1.5 m | 138 mm | 22 N | 100 mm | 100 mm | 20 mm | 32 mm |
| SPU4X6X4C | 3.8 mm | 6 mm | 1.1 mm |
|
4 m | 3 m | 296 mm | 47 N | 100 mm | 100 mm | 20 mm | 32 mm |
| SPU5.5X8X2.5C | 5.5 mm | 8 mm | 1.25 mm |
|
2.5 m | 2 m | 151 mm | 18 N | 120 mm | 500 mm | 25 mm | 41 mm |
| SPU5.5X8X5C | 5.5 mm | 8 mm | 1.25 mm |
|
5 m | 4 m | 362 mm | 43 N | 120 mm | 500 mm | 25 mm | 41 mm |
| SPU5.5X8X7.5C | 5.5 mm | 8 mm | 1.25 mm |
|
7.5 m | 6 m | 564 mm | 67 N | 120 mm | 500 mm | 25 mm | 41 mm |
| SPU5.5X8X10C | 5.5 mm | 8 mm | 1.25 mm |
|
10 m | 7.5 m | 766 mm | 91 N | 120 mm | 500 mm | 25 mm | 41 mm |
| SPU5.5X8X12.5C | 5.5 mm | 8 mm | 1.25 mm |
|
12.5 m | 9.5 m | 976 mm | 116 N | 120 mm | 500 mm | 25 mm | 41 mm |
| SPU6.5X10X2.5C | 6.5 mm | 10 mm | 1.75 mm |
|
2.5 m | 2 m | 126 mm | 12 N | 120 mm | 500 mm | 40 mm | 60 mm |
| SPU6.5X10X5C | 6.5 mm | 10 mm | 1.75 mm |
|
5 m | 4 m | 294 mm | 28 N | 120 mm | 500 mm | 40 mm | 60 mm |
| SPU6.5X10X7.5C | 6.5 mm | 10 mm | 1.75 mm |
|
7.5 m | 6 m | 463 mm | 44 N | 120 mm | 500 mm | 40 mm | 60 mm |
| SPU6.5X10X10C | 6.5 mm | 10 mm | 1.75 mm |
|
10 m | 7.5 m | 631 mm | 60 N | 120 mm | 500 mm | 40 mm | 60 mm |
| SPU6.5X10X12.5C | 6.5 mm | 10 mm | 1.75 mm |
|
12.5 m | 9.5 m | 800 mm | 76 N | 120 mm | 500 mm | 40 mm | 60 mm |
| SPU8X12X2.5C | 8 mm | 12 mm | 2 mm |
|
2.5 m | 2 m | 126 mm | 10 N | 120 mm | 500 mm | 50 mm | 74 mm |
| SPU8X12X5C | 8 mm | 12 mm | 2 mm |
|
5 m | 4 m | 290 mm | 23 N | 120 mm | 500 mm | 50 mm | 74 mm |
| SPU8X12X7.5C | 8 mm | 12 mm | 2 mm |
|
7.5 m | 6 m | 454 mm | 36 N | 120 mm | 500 mm | 50 mm | 74 mm |
| SPU8X12X10C | 8 mm | 12 mm | 2 mm |
|
10 m | 7.5 m | 618 mm | 49 N | 120 mm | 500 mm | 50 mm | 74 mm |
| SPU8X12X12.5C | 8 mm | 12 mm | 2 mm |
|
12.5 m | 9.5 m | 770 mm | 61 N | 120 mm | 500 mm | 50 mm | 74 mm |
| SPU8X12X15C | 8 mm | 12 mm | 2 mm |
|
15 m | 11.5 m | 934 mm | 74 N | 120 mm | 500 mm | 50 mm | 74 mm |
Grafico pressione/temperatura
PRESSURE/TEMPERATURE
Descrizione
Operating temperature: from -40°C to 70°C
Safety factor on working pressure: 3:1
Here on the side: Graph of pressure drop expressed as a % in relation to temperature
20°C
100
30°C
83
40°C
72
50°C
64
60°C
50
Customizations achievable:
Color
Diameter
Pre-formed designs
Fittings
